16‐03‐003BUG – Aluminium Reference Plate becoming loose – 2006-2013 Bugatti Veyron

NHTSA Campaign Number: 16V166
Manufacturer BUGATTI
Components STRUCTURE
Potential Number of Units Affected 87

Automobile Jacking Plates may Loosen and Detach

If these jacking plates separate from the vehicle while driving, they may be a road hazard, potentially striking another vehicle, and increasing the risk of a crash.

Summary

Bugatti is recalling certain 2006-2010 Veyron vehicles manufactured March 10, 2006, to March 9, 2012, 2010-2012 Veyron Grand Sport vehicles manufactured September 29, 2009, to October 14, 2014, and 2011-2013 Veyron Super Sport vehicles manufactured February 18, 2011, to August 17, 2012.

In the affected vehicles, the underbody aluminum reference plates used when lifting the vehicle may corrode and detach from the vehicle.

Remedy

Bugatti will notify owners, and dealers will rivet and seal the underbody aluminum reference plates, free of charge.

The recall began on May 26, 2016.

Owners may contact Bugatti at (805) 557-1050.

Notes

Owners may also contact the National Highway Traffic Safety Administration Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to www.safercar.gov.

Check if your Bugatti has a Recall

Technical Bulletin
16‐03‐003BUG
RPS Plate

Applicability:

Bugatti Veyron
Bugatti Grand Sport
Bugatti Super Sport

VIN range :

As per E573

Market Region:

All

Introduction:

RPS plates on the Monocoque chassis have to be secured with rivets

Description:

If the RPS plates of the Monocoque chassis are not riveted, check their position prior to securing them.

If the RPS plate of the Monocoque chassis is not present, a new RPS plate has to be installed

Warning:

If any doubt regarding this procedure, contact your Bugatti contact.

Do NOT drive/move or lift the car within 24h of the repair.

Procedure:

Check that the RPS plate is not dislocated from the monocoque. The RPS plate must not move during the hand verification (Do Not use tools). If the RPS plate is not in place or is loose, see the RPS installation procedure below

Mechanically clean the RPS plate and surrounding area as shown on Fig. 1

Fig 1: Mechanically cleaned RPS‐ Plate (Surrounding and bottom surface)

Install the drilling gauge as shown on RPS installation drawing (Fig. 2), check the gauge position (Fig. 3‐5) prior to securing.

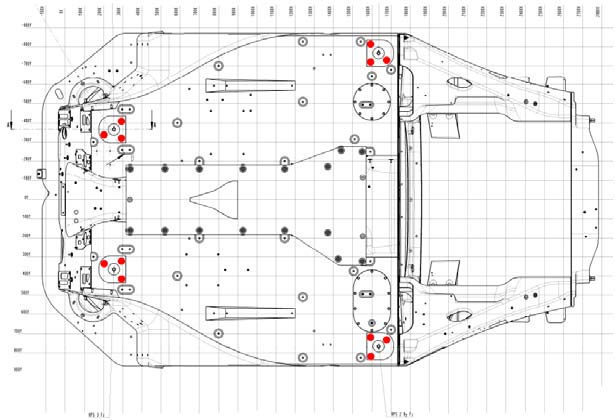

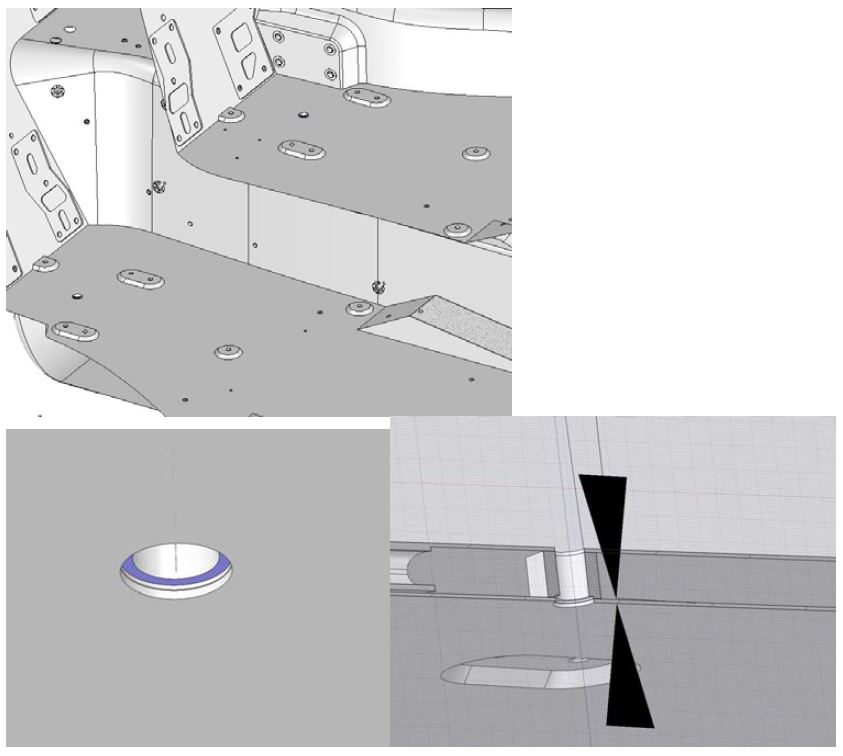

Fig 2: View from the bottom of the car, Schematic position of the fastening holes on all RPS

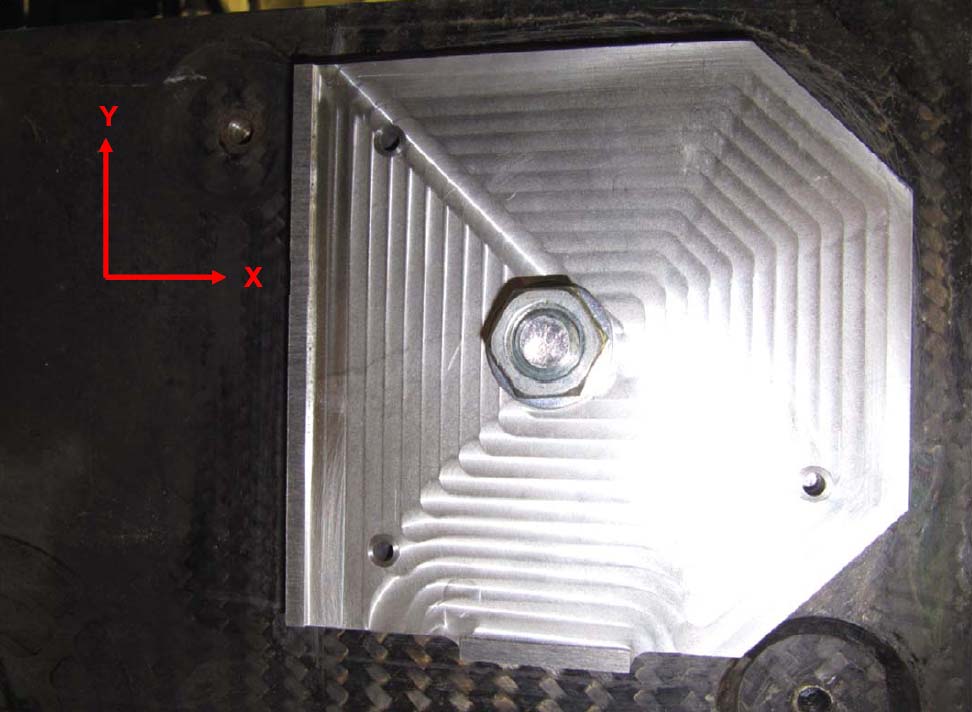

Fig 3: Installation position of the drilling gauge on the Monocoque

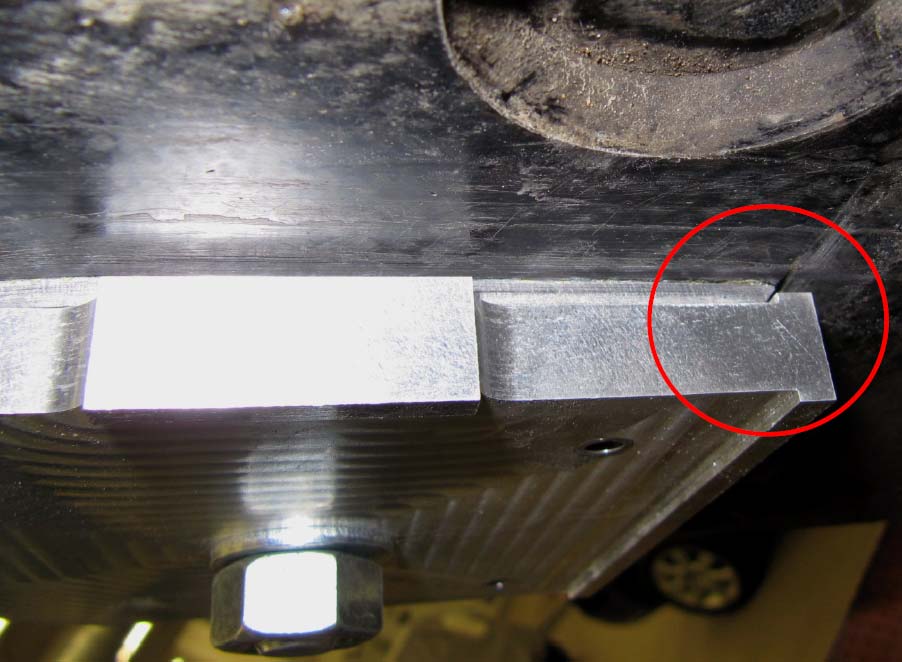

Fig 4: Installation position of the drilling gauge on the Monocoque with Detail X stop

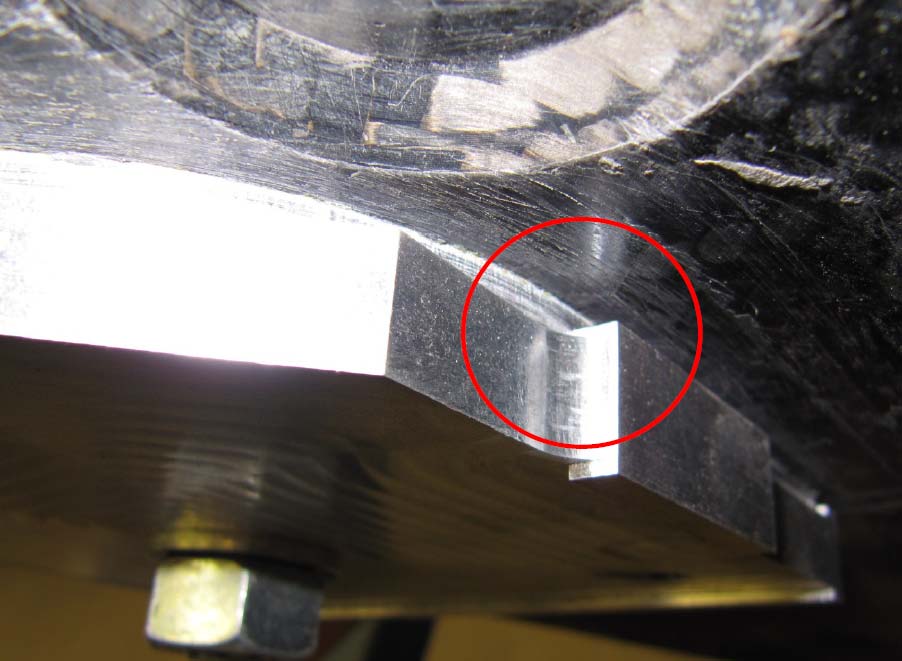

Fig 5: Installation position of the drilling gauge on the Monocoque with Detail Y stop

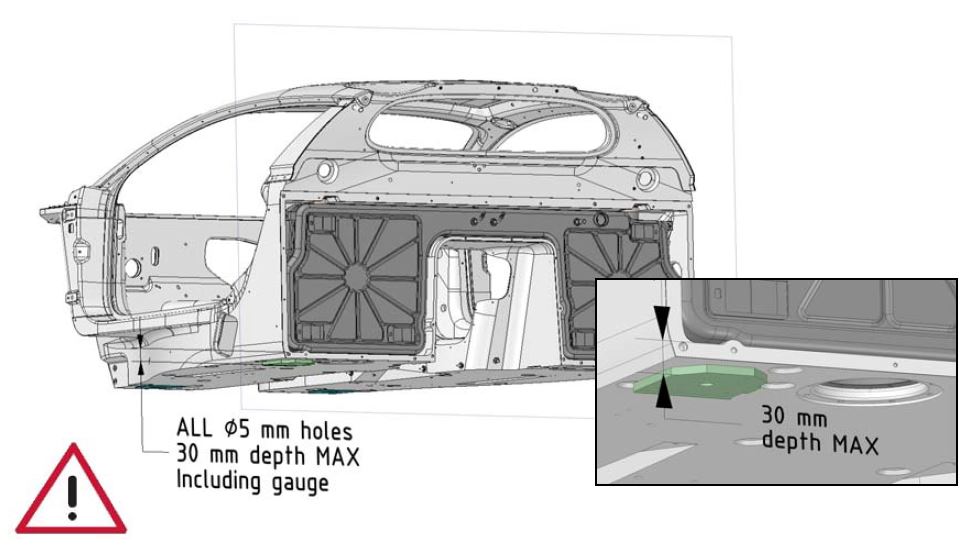

Drill 3 holes dia. 5mm with max depth 30mm (including drilling gauge height) B. Monocoque or Fuel Tank could be damaged if not respected

Remove drilling gauge and deburr holes (Fig.6(

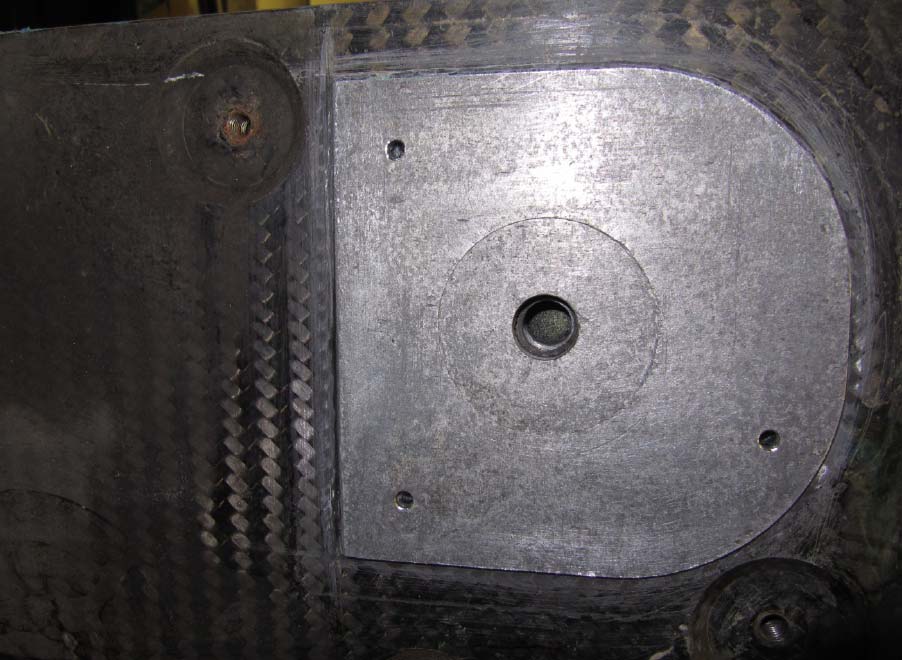

Fig 6: RPS‐Plate with the 3 drilled and deburred holes (Ø5,0mm)

Install and expand the 3 blind rivets Typ: Monobolt 2774 ø 4,8 mm (aluminum) with EPDM seal (Fig. 7‐9)

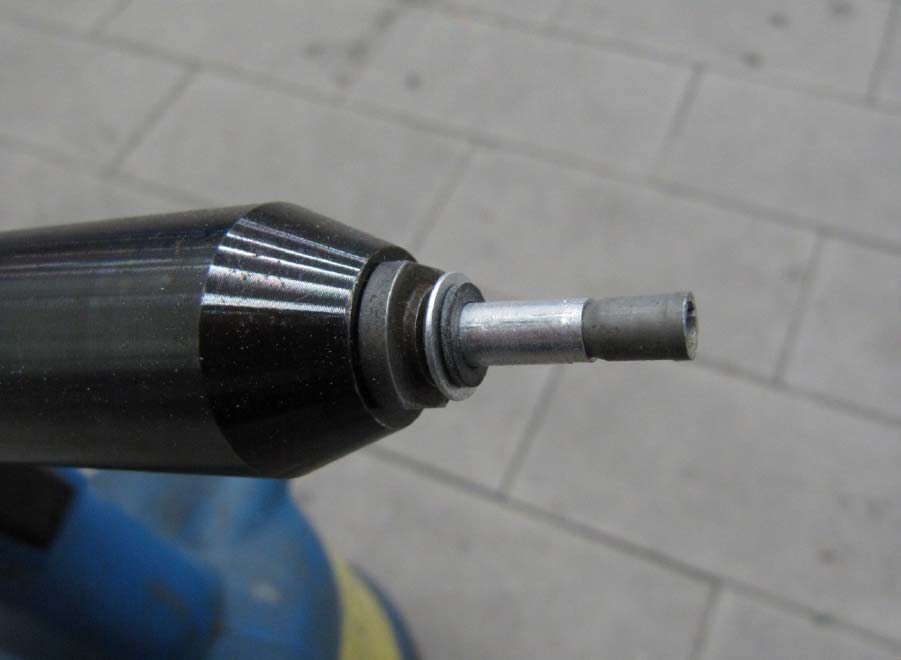

Fig 7: Avdel installation device Genesis nG3 with Monobolt Rivet 2774 with installed seal

Remark : Alternative installation device:

Pop Rivet Plilers V.A.G.‐ System Nr. VAS 1753 A with 72005‐02007 nozzle

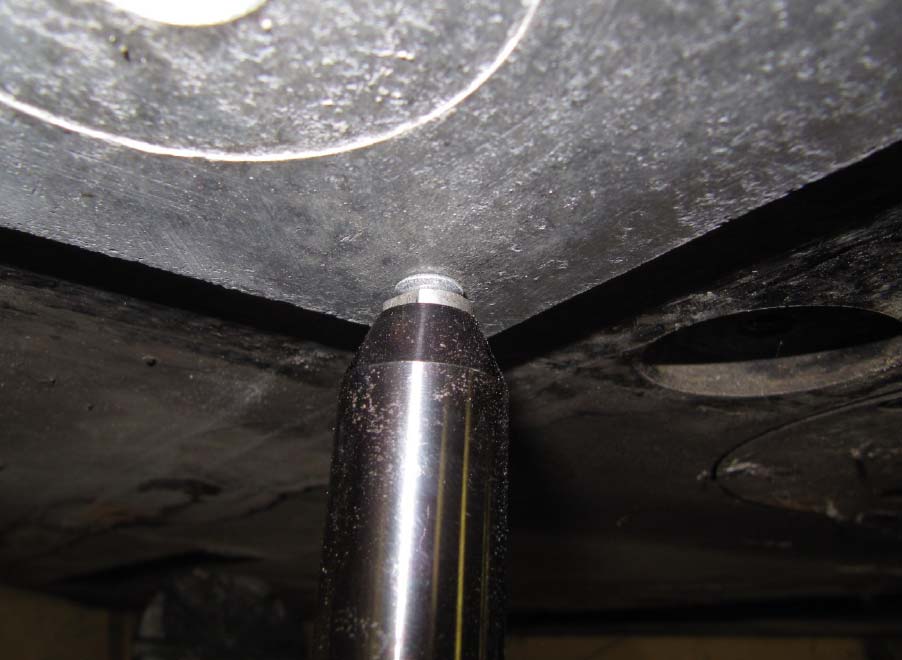

Fig 8: Installation of the blind rivet with the Avdel installation device Genesis nG3

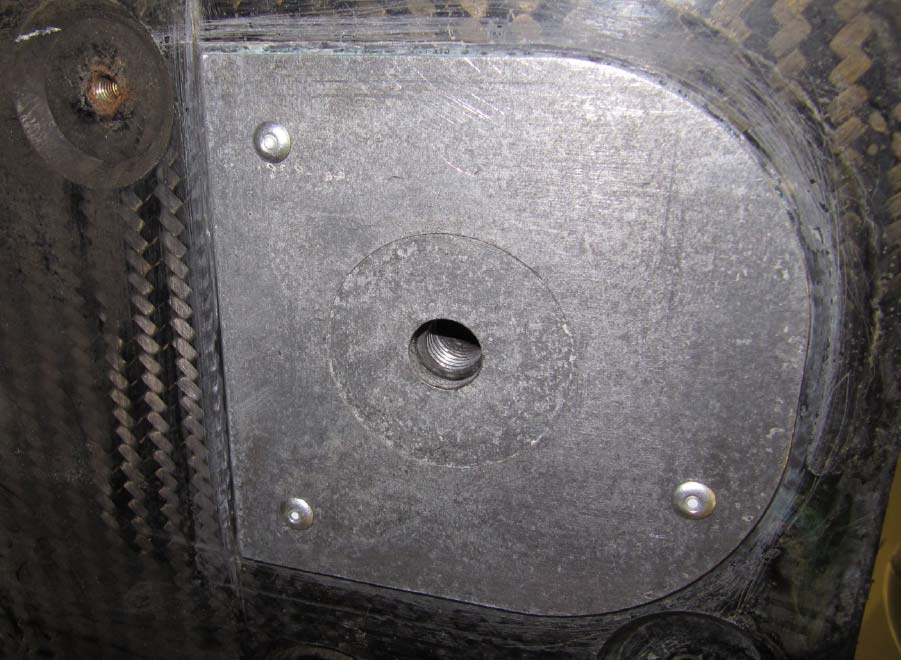

Fig 9: Riveted RPS Plate without surrounding seal

Degrease the RPS plate surrounding with Brake Cleaner and let it dry for about 10 min
Seal the RPS Plate surrounding with 3M Scotch‐Weld DP 490 (DA 001 730 A2) (Fig. 10‐11) with seal bead.

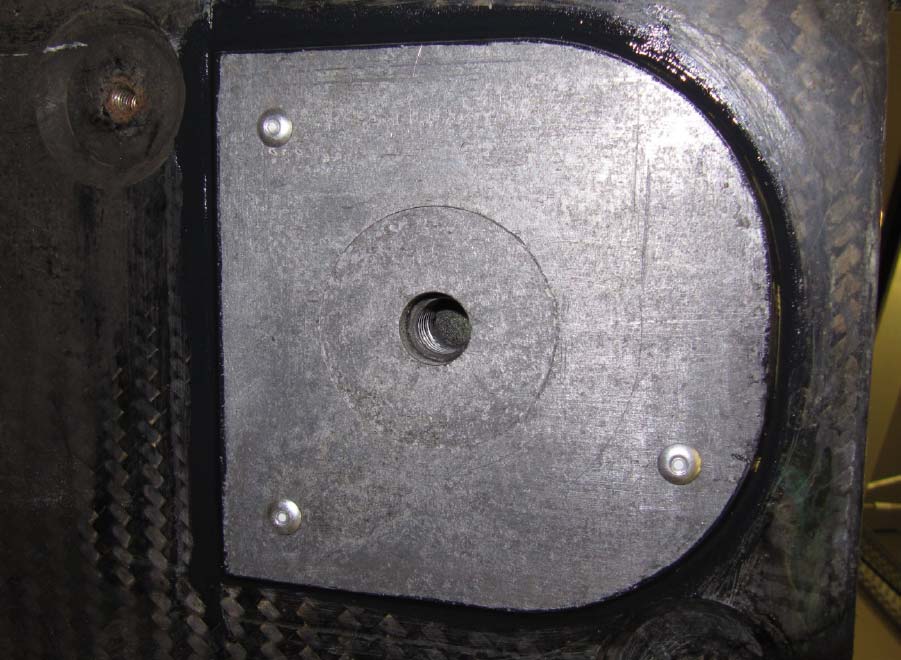

Fig 10: RPS Plate surrounding seal with Scotch‐Weld DP 490 (DA 001 730 A2)

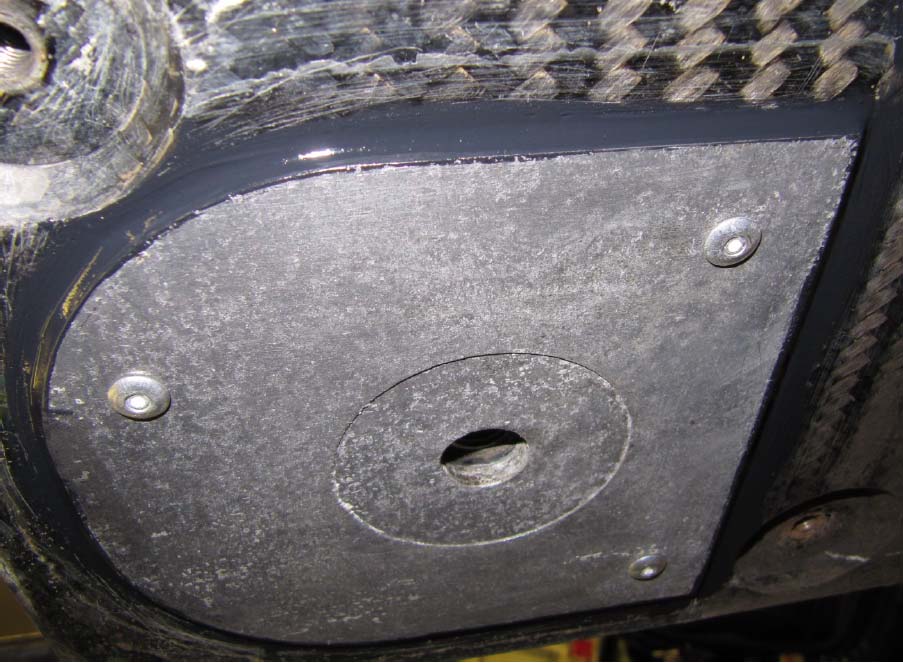

Fig 11: Detail view of the RPS Plate surrounding sealed with Scotch‐Weld DP 490

Repeat sequence 1 to 8 for each RPS plates
End of procedure

RPS Plate Re‐installation procedure:

If the RPS Plate is loose, perform steps 2 to 5 of previous procedure
Carefully remove the RPS plate, and mechanically clean contact surfaces between Monocoque and RPS plate with sandpaper grit 80 – 100
Degrease the RPS plate and Monocoque RPS area with Brake Cleaner and let it dry for about 10 min
Apply a thin film of the structural adhesive 3M Scotch‐Weld DP 490 (DA 001 730 A2) on the RPS Plate
Install the RPS Plate on the Monocoque using drilling gauge installation bolt
Install and expand the 3 blind rivets Typ: Monobolt 2774 ø 4,8 mm (aluminium) with EPDM seal (Fig. 7‐9)
Remove drilling gauge installation bolt
Seal the RPS Plate surrounding with 3M Scotch‐Weld DP 490 (DA 001 730 A2) (Fig. 10‐11) with seal bead.
End of procedure

New RPS Plate installation procedure:

If the RPS Plate is not present on the vehicle, a measurement of the RPS insert has to be performed to select appropriate RPS Plate.

Make sure the RPS tap is removed and clean the RPS insert with Brake Cleaner
Use the depth probe of a Vernier calliper to measure the distance between the insert and the Monocoque Chassis

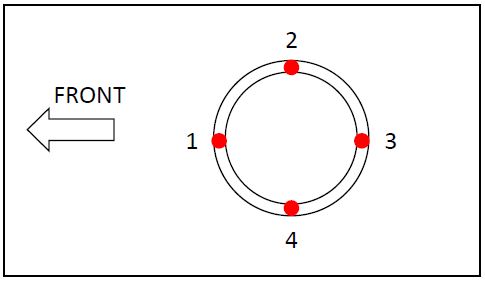

Repeat the measurement for the four measurement points of each missing RPS plate.

Record the measurement values

Calculate the average of the 4 measurements , and define appropriate RPS plate according following table (to be confirmed according RPS plate)

Average distance from Insert to Monocoque	RPS plate thickness to be used
1,00 to 1,50	3,00 tbc
1,51 to 2,00	2,50 tbc
2,01 to 2,50	2,00 tbc
2,51 to 3,00	1,50 tbc

Mechanically clean contact surfaces between Monocoque and RPS plate with sandpaper grit 80 – 100

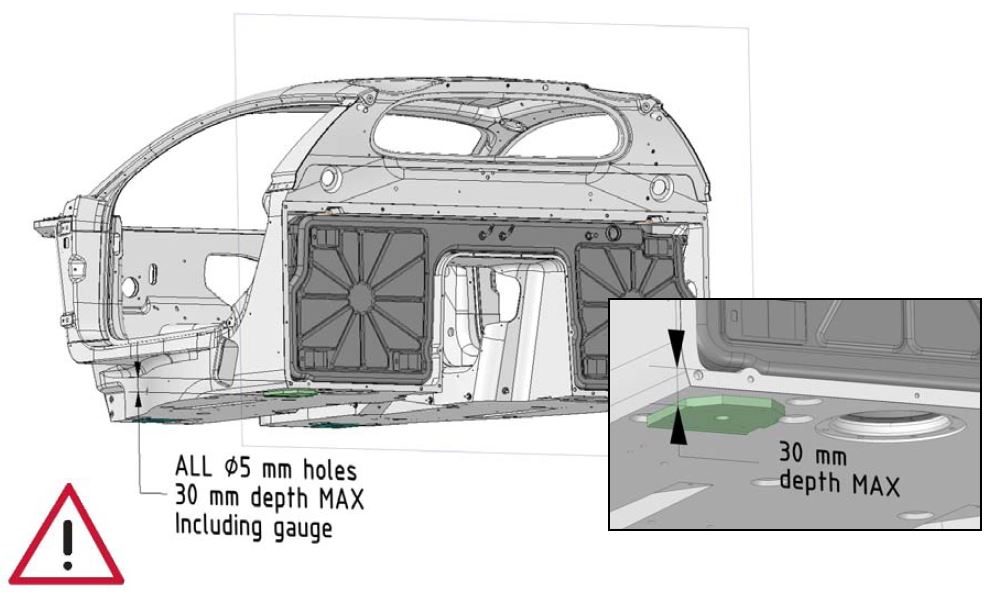

Install the selected RPS Plate on the Monocoque and the drilling gauge Drill 3 holes dia. 5mm with max depth 30mm (including drilling gauge height)

Remove drilling gauge and deburr RPS Plate holes
Degrease the RPS plate and Monocoque RPS area with Brake Cleaner and let it dry for about 10 min
Apply a thin film of the structural adhesive 3M Scotch‐Weld DP 490 (DA 001 730 A2) on the selected RPS Plate
Install the selected RPS Plate on the Monocoque using drilling gauge installation bolt
Install and expand the 3 blind rivets Typ: Monobolt 2774 ø 4,8 mm (aluminium) with EPDM seal (Fig. 7‐9)
Remove drilling gauge installation bolt
Seal the RPS Plate surrounding with 3M Scotch‐Weld DP 490 (DA 001 730 A2) (Fig. 10‐11) with seal bead
End of procedure
